Crushers

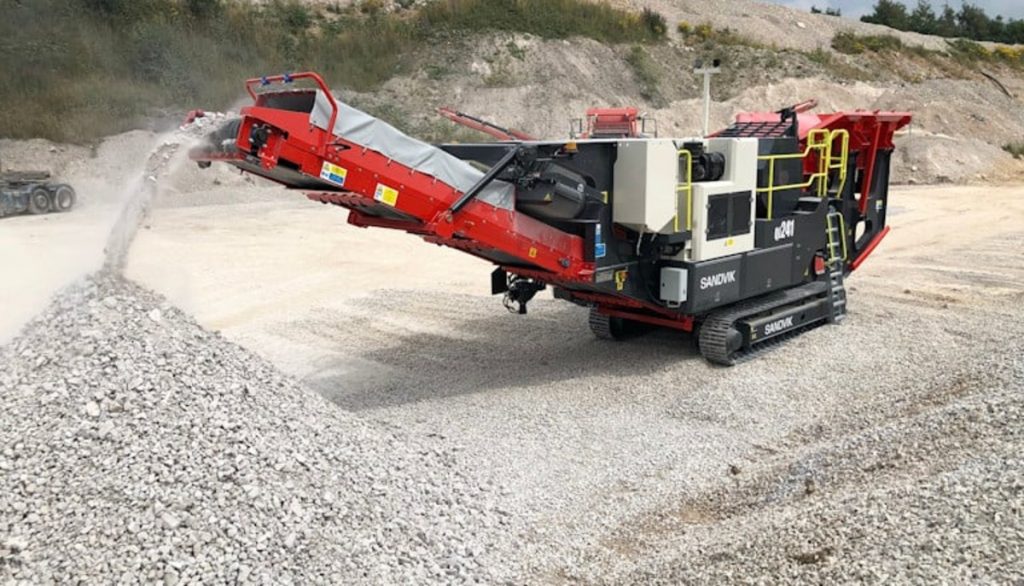

Crushers play a pivotal role in a variety of industries by reducing the size of large raw materials into smaller, manageable pieces, making them easier to handle, transport, and process. These machines are essential in sectors such as mining, construction, recycling, and even chemical processing. Whether it’s breaking down massive rocks in quarries, processing ores in mining operations, or recycling concrete and other materials, crushers are indispensable tools for ensuring efficiency in material handling and manufacturing. The range of crushers available—each suited for different materials, sizes, and production goals—offers versatility to meet the demands of various applications. In this article, we will delve into the different types of crushers, their working mechanisms, advantages, disadvantages, and how they are applied in real-world scenarios.

Jaw Crushers

• Function: Jaw crushers are designed to crush large, hard materials between two jaws. One jaw is fixed (stationary), while the other moves back and forth (swing jaw), creating a compressive force that breaks down the material.
• Applications: Typically used for primary crushing of large rocks, ores, and minerals in industries such as mining, construction, and aggregate production.
• Advantages:
  • Simple design and easy to maintain.
  • High throughput capacity.
  • Can handle a wide range of material
• Types:
  • Single-toggle: Uses one moving jaw, resulting in a more aggressive crushing motion.
  • Double-toggle: Uses two moving jaws for increased crushing force, but with less speed.

Cone Crushers

• Function: Cone crushers use a rotating cone within a concave bowl to crush materials. The material is fed into the top of the crusher and is crushed as it moves downward, gradually being reduced in size.
• Applications: Ideal for secondary and tertiary crushing of hard or abrasive materials like granite, basalt, and ores.
• Advantages:
  • High reduction ratios (up to 10:1 or more).
  • Adjustable output size and consistent product shape.
  • Highly efficient in reducing the size of hard materials.
• Types:
  • Standard Cone Crushers: Provide coarse to medium crushing.
  • Short-head Cone Crushers: Designed for fine crushing.

Impact Crushers

• Function: These crushers work by using the impact force to crush materials, often involving high-speed rotating hammers or blow bars that strike the material and break it apart.
• Applications: Primarily used for crushing softer materials like limestone, gypsum, and coal, or when creating finer aggregates.
• Advantages:
  • High reduction ratios.
  • High-speed production and the ability to handle materials with a range of hardness.
• Types:
  • Horizontal Shaft Impact (HSI) Crushers: Suitable for high-speed, low-energy applications.
  • Vertical Shaft Impact (VSI) Crushers: Commonly used for producing high-quality, shaped aggregates, ideal for sand-making applications.

Roll Crushers

• Function: Roll crushers consist of two cylindrical rollers that rotate toward each other. Material is fed into the space between the rollers, where it is crushed as the rollers compress it.
• Applications: Used for smaller or softer materials like coal, limestone, or clays.
• Advantages:
  • Can handle sticky and wet materials better than other types of crushers.
  • Low power consumption.
• Types:
  • Single-roll Crushers: One roll crushes the material against a flat surface.
  • Double-roll Crushers: Two counter-rotating rolls provide more effective crushing.

Hammer Crushers

• Function: Hammer crushers use high-speed rotating hammers or bars to break down materials by impact. The material is shattered when struck by the hammer, which can then be further reduced in size through sieving or a subsequent stage of crushing.
• Applications: Commonly used for breaking soft, brittle materials like coal, gypsum, and limestone.
• Advantages:
  • Simple design with fewer moving parts.
  • Ideal for high-volume, low-density materials.
• Types:
  • Single-stage Hammer Crushers: Used for direct reduction of larger materials.
  • Double-stage Hammer Crushers: Can handle larger feed sizes and produce finer outputs.

Key Factors to Consider When Choosing a Crusher:

1. Material Hardness: Harder materials, such as granite or basalt, require more robust crushers like cone or gyratory crushers.
2. Feed Size: Crushers are chosen based on the feed size of the material. Jaw and gyratory crushers are typically used for large materials, while impact and cone crushers handle smaller materials.
3. Required Output Size: If a finer output is required, crushers with high reduction ratios such as cone crushers or impact crushers may be more suitable.
4. Capacity: The crusher’s capacity (tons per hour) should meet the requirements of the operation, especially in large-scale mining and quarry operations.
5. Cost of Operation: Some crushers, like jaw crushers, are easier to maintain and more cost-effective, while others like gyratory or cone crushers may require more frequent maintenance and incur higher operational costs.

Common Applications of Crushers:

• Mining: Crushing ores and rocks to extract valuable materials like gold, silver, copper, and iron.
• Construction: Reducing the size of construction debris, rocks, and stones for use in building materials.
• Aggregate Production: Producing sand, gravel, and other aggregate materials used in concrete production.
• Recycling: Crushing waste materials, including metals, glass, and plastics, to be reused in new products.
• Chemical Processing: Size reduction of raw materials used in chemical production.

Maintenance and Safety:

Crushers require regular maintenance to ensure efficient operation and prevent breakdowns. Regular checks on wear parts such as jaws, hammers, blow bars, and liners, as well as lubrication of moving parts, are essential for maximizing the lifespan of the machine. Proper safety measures should also be in place, such as guarding and emergency stop mechanisms, to protect operators and maintenance personnel.
